RF Filters

Design & simulation solutions for RF Filters.

Engineers designing RF filters often grapple with the challenges of managing signal integrity, as unwanted noise and interference can significantly degrade performance in high-frequency applications. Additionally, achieving the desired frequency response while ensuring compact designs and manufacturability can be complex, requiring careful consideration of component selection, layout, and environmental factors.

Simulation plays a crucial role in the design and optimisation of RF filters, enabling engineers to efficiently analyse complex behaviors and interactions within high-frequency systems. By leveraging Ansys simulation tools, engineers can simulate the electromagnetic characteristics of various filter configurations, allowing them to predict performance outcomes without the need for costly physical prototypes.

Optimising RF Filters

Electronic/ electrical systems utilise RF filters to selectively isolate desirable frequencies and eliminate undesirable frequencies. There are many forms of RF filters for various applications, from printed circuit boards (PCBs) to telecommunication to EMI suppression and each requires a deep understanding of the specific design requirements in order to perform correctly.

Ansys simulation tools enable automated design, synthesis and optimisation of RF, microwave and digital filters in an efficient and straightforward process, providing a complete end-to-end RF filter design and test and measurement platform that features auto-3D modeling, AI-driven optimisation, and fully integrated Ansys HFSS workflows.

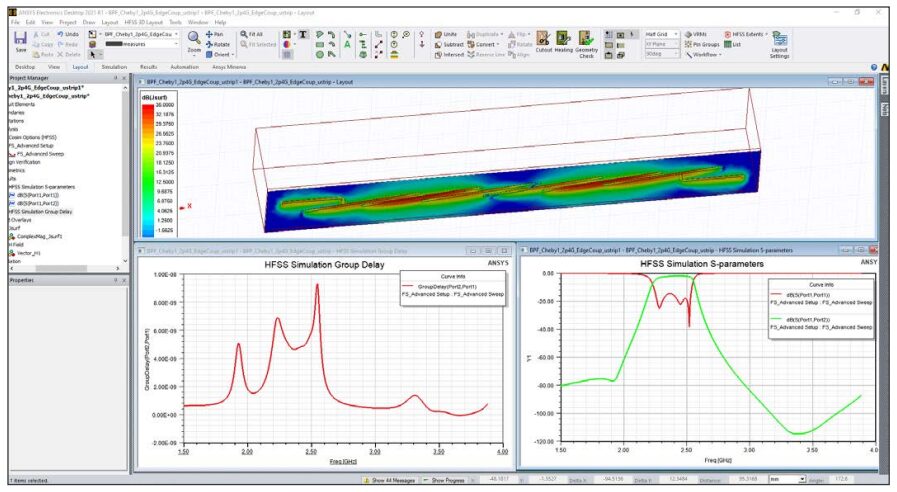

Electromagnetic simulation of synthesised filter in HFSS

Synthesising Filter Response

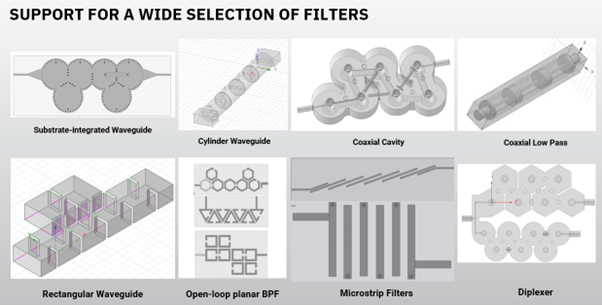

Synthesising filters is a complex task that has traditionally required years of experience. The challenge includes the appropriate selection of filter type based on the intended application, such as low pass, high pass, band pass, band stop and notch filters. The designer also needs to consider the filter’s frequency response both in the pass band and the stop band/bands. Additionally, the designer needs to consider the choice between lumped, distributed, or active filters, for the implementation.

Ansys filter synthesis tools such as Nuhertz and Synmatrix make these tasks quick and easy to implement.

Translating filter responses into 3D dimensions

Realising a topology that fits your filter requirements — especially converting filter specifications (e.g., frequency response, insertion loss) into a 3D electromagnetic (EM) model — is a critical step in RF and microwave filter design.

Using resources from the Ansys Filter Design portfolio, this process becomes efficient, systematic, and significantly more accurate.

Managing Thermal Stability of a Filter

RF filters are highly susceptible to variations in operating ambient temperature. Temperature changes can lead to slight variations in the cavity due to the material’s thermal coefficient of expansion. Therefore, the choice of material becomes an important criterion for filter design. The design should also have enough margin built into it to compensate for the effects of thermal drift. These considerations add additional complexity to the design process.

Need Ansys solution text here
